Fuel tank isolation valves

Hybrid cars face the challenge that they can drive without the combustion engine running. Thus, the gasoline in the tank can evaporate and create a pressure increase in the tank which can be  controlled by our Fuel Tank Isolation Valves (FTIV). Opens electrically and also automatically through a spring loaded diaphragm.

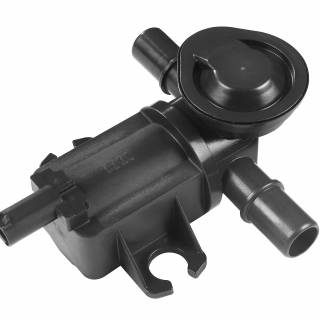

Product photos

Fuel Tank Isolation Valve
Fuel Tank Isolation Valve
Fuel Tank Isolation Valve
Fuel Tank Isolation Valve

Features

  • The fuel tank isolation valve can be opened electrically.
  • Also opens automatically based on a spring loaded diaphragm.

Hybrid cars face the challenge that they can drive without the combustion engine running. Thus, the gasoline in the tank can evaporate and increase pressure in the tank. The pressure in the tank must be controlled, and for this purpose we developed our Fuel Tank Isolation Valves (FTIV).

Also, for the vacuum which might occur due to falling temperatures ( e.g. if a car is parked overnight), our FTIV automatically opens without auxiliary energy.

Product specifications

Item

Range

Unit

Material

PA6.6

Temperature range

-40 to 85

°C

Internal resistance against

E22, E85, M15, M26, fuel ROZ95, fuel ROZ98, RSG E10

External leakage

2mg / day

mg

Opening pressure

adjustable, often at > 300

hPa

Note: The above figures show some examples. Please contact us when you are consider purchasing a valve.
